1000 x 1000 x 40 Premium Outrigger Pad

List: £254.59
BIG SAVINGS WHEN YOU BUY ONLINE!

Original price was: £229.13.Current price is: £185.00. +VAT

Orders placed before 2pm will be delivered next working day *
* Pallets can take between 1-3 days. Mainland UK. Timings will vary for overseas orders dependant on air, sea or road freight.

In stock

SKU: IP-59001 Categories: Construction, Crane Hire, Crane Pads, Industrial Services, Lifetime Warranty, Oil & Gas, Outrigger Pads, Plant Hire, Powered Access Platforms, Premium Pads, Size: 900 - 1100mm, Utilities

Dimensions (mm)	1000 x 1000 x 40
Load Capacity (tonnes)	42.00
Weight (kgs)	38.40
Product Code	IP-59001

Download Brochure

Print

Ask about our Price Match Promise!

Find out more

Need a hand? Speak to our expert team.

Speak to an expert

Product Description

IP-59001

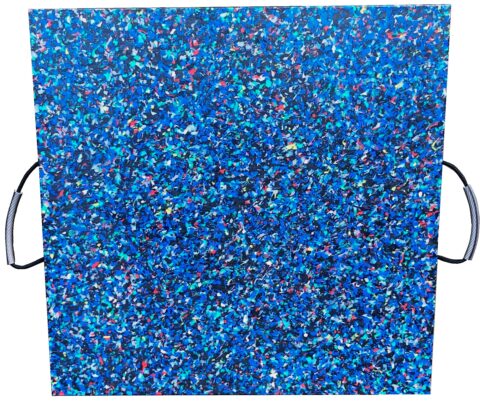

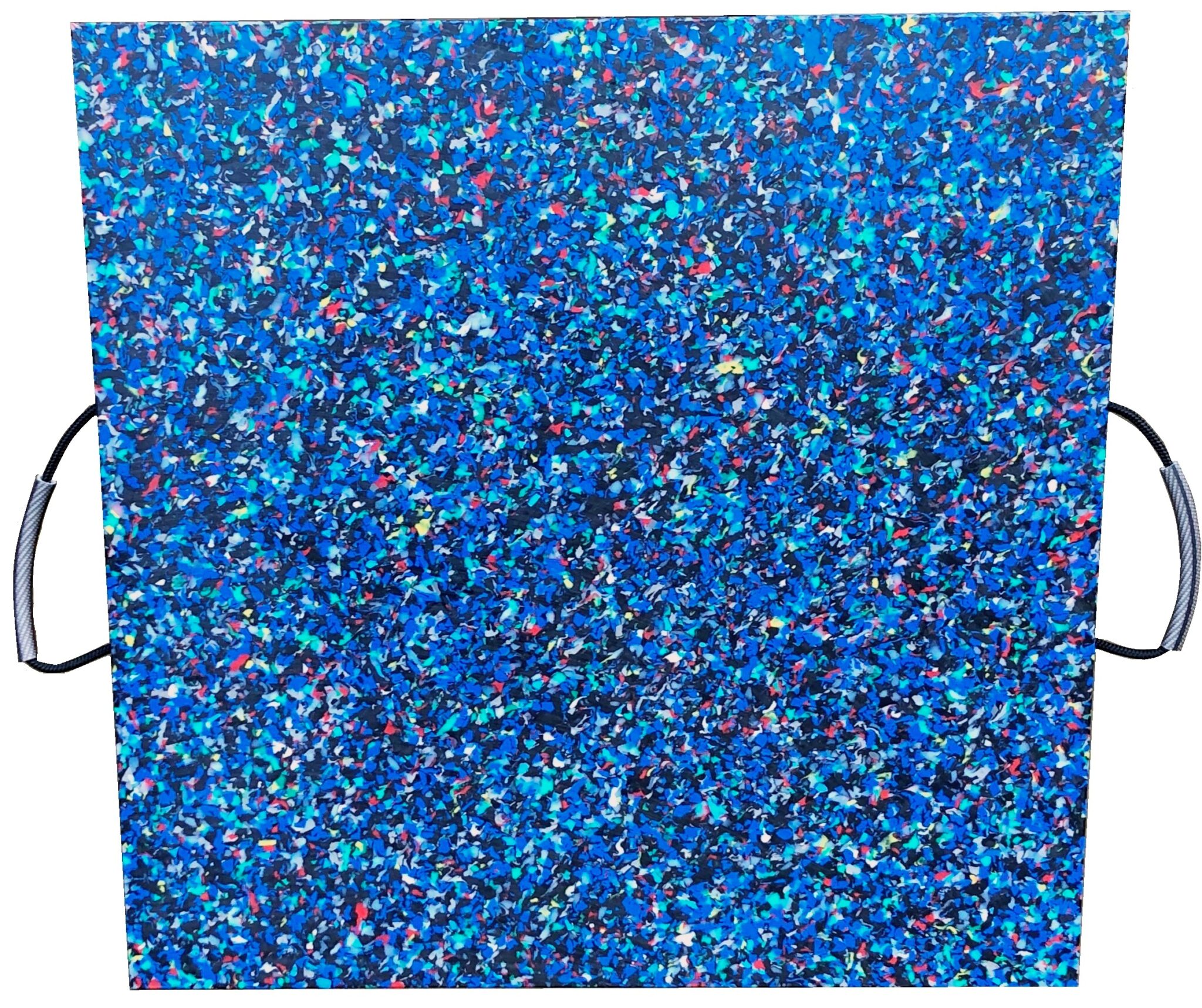

Premium Outrigger Pad

Features include:

SmartStore available for these pads to provide easy transportation and storage. Find out more here
Made from extremely high quality, heavy duty UHMW polyethylene
Offers protection against water, corrosion and splintering
Light and easy to handle as well
Retains its shape under extreme vertical pressure, due to the in-built memory technology making them virtually indestructible
Lifetime warranty

To make an enquiry about our pads or to get a quotation call us on 01952 671403 or contact us via email

Material Specification

The above specifications apply to all Premium Outrigger Pads
Material Specification	ISO-LEN 500	Test Method
Density of homogeneously moulded material	0.951 g/cm³	DIN 53479
Molecular weight	ca. 0.6	/
Mechanical Properties
Tensile strength	28 N/mm²	DIN 53455
Breaking strength 23ºC	38 N/mm²	DIN 53455
Elongation @ break 23ºC	>600	DIN 53455
Torsional stiffness 23ºC	350 N/mm²	DIN 53477
Torsional stiffness -40C	700 N/mm²	DIN 53477
Ball indention hardness 30 sec.	46 N/mm²	DIN 53456
Shore hardness D	64	DIN 53505
Notched impact strength (15º angle)	>30 o. Br. mj/mm²	DIN 53453
Abrasion	250-350%	Slurry Test
Melting point	133ºC	polarising microscope
Thermical coefficient of linear expansion 23-80ºC	1.7-2.5 x 10⁻⁴ / K ºC⁻¹ 1/K	DIN 52328
Thermal conductivity @ 23ºC	0.40 W/ºC x m	DIN 52612
Dimensional stability under heat	80ºC	DIN 53461 / ISO/R 75
Electric Properties
Volume resistance	>10¹⁷ W x cm	DIN 53482
Surface resistance	>10¹⁴ W	DIN 53482
Dielectric strength	150 KV / cm	DIN 53481
