£613.05 +VAT
Orders placed before 2pm will be delivered next working day *
* Pallets can take between 1-3 days. Mainland UK. Timings will vary for overseas orders dependant on air, sea or road freight.
| Dimensions (mm) | 1000 x 80 |
| Load Capacity (tonnes) | 84.00 |
| Weight (kgs) | 60.00 |
| Product Code | IP-57684 |

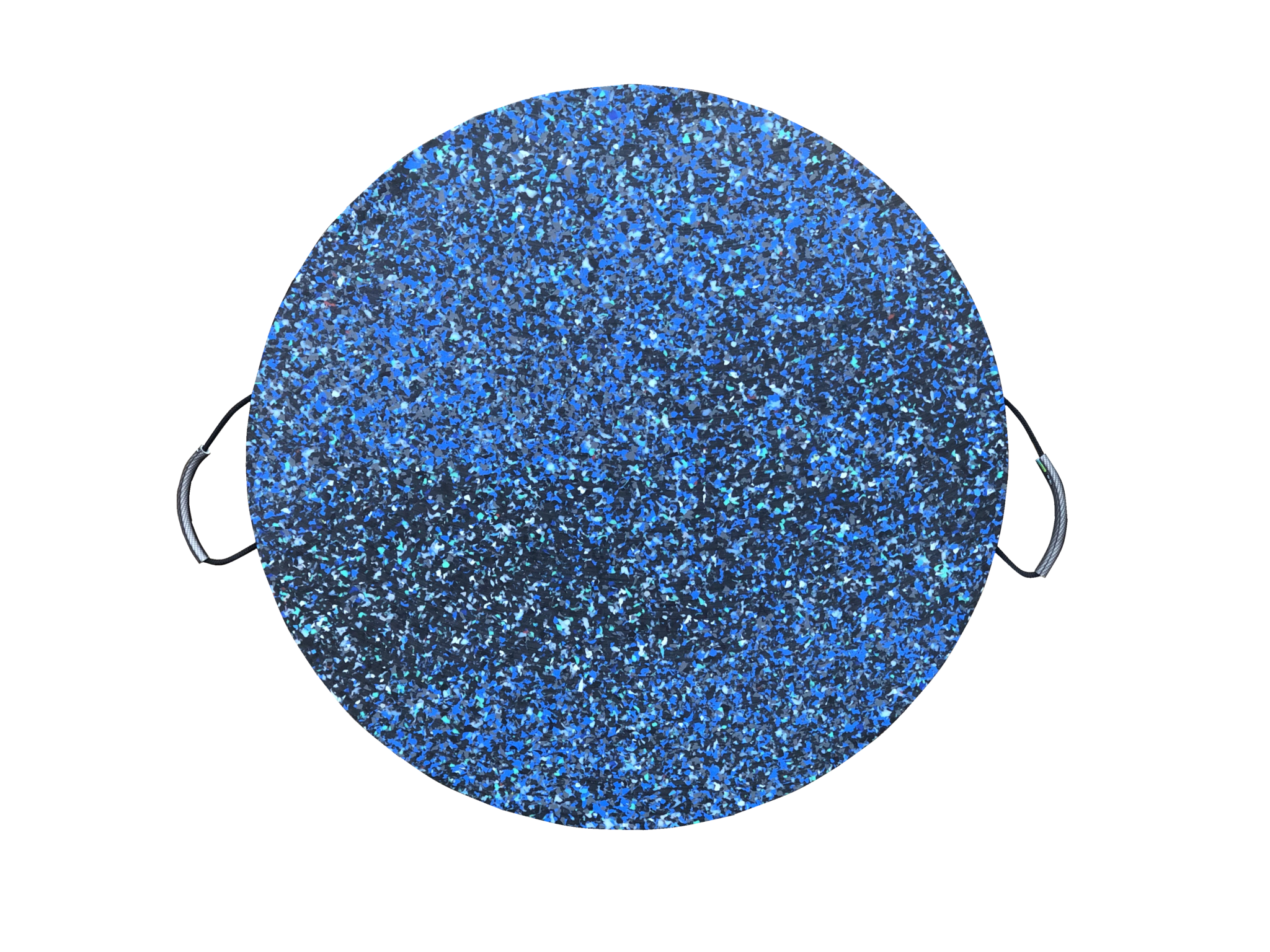

IP-57684
Features include:
To make an enquiry about our pads or to get a quotation call us on 01952 671403 or contact us via email
| Material Specification | ISO-LEN 500 | Test Method |
|---|---|---|
| Density of homogeneously moulded material | 0.951 g/cm³ | DIN 53479 |
| Molecular weight | ca. 0.6 | / |
| Mechanical Properties | ||
| Tensile strength | 28 N/mm² | DIN 53455 |
| Breaking strength 23ºC | 38 N/mm² | DIN 53455 |
| Elongation @ break 23ºC | >600 | DIN 53455 |
| Torsional stiffness 23ºC | 350 N/mm² | DIN 53477 |
| Torsional stiffness -40C | 700 N/mm² | DIN 53477 |
| Ball indention hardness 30 sec. | 46 N/mm² | DIN 53456 |
| Shore hardness D | 64 | DIN 53505 |
| Notched impact strength (15º angle) | >30 o. Br. mj/mm² | DIN 53453 |
| Abrasion | 250-350% | Slurry Test |
| Melting point | 133ºC | polarising microscope |
| Thermical coefficient of linear expansion 23-80ºC | 1.7-2.5 x 10⁻⁴ / K ºC⁻¹ 1/K | DIN 52328 |
| Thermal conductivity @ 23ºC | 0.40 W/ºC x m | DIN 52612 |
| Dimensional stability under heat | 80ºC | DIN 53461 / ISO/R 75 |
| Electric Properties | ||
| Volume resistance | >10¹⁷ W x cm | DIN 53482 |
| Surface resistance | >10¹⁴ W | DIN 53482 |
| Dielectric strength | 150 KV / cm | DIN 53481 |
| **The above specifications apply to all Premium Outrigger Pads** | ||
