1200 X 150 X 120 WEDGE PART 1

1200 X 150 X 120 WEDGE PART 1

List: £232.38
BIG SAVINGS WHEN YOU BUY ONLINE!

Original price was: £209.14.Current price is: £162.67. +VAT

10 in stock

Orders placed before 2pm will be delivered next working day *
* Pallets can take between 1-3 days. Mainland UK. Timings will vary for overseas orders dependant on air, sea or road freight.

10 In stock
SKU: IP-72265 Categories: , , , , , , , , , , ,
Dimensions (mm)1200 x 150 x 120
Weight (kgs)21.60
Product CodeIP-72265

Ask about our Price Match Promise!

Need a hand? Speak to our expert team.

Product Description

IP-72265

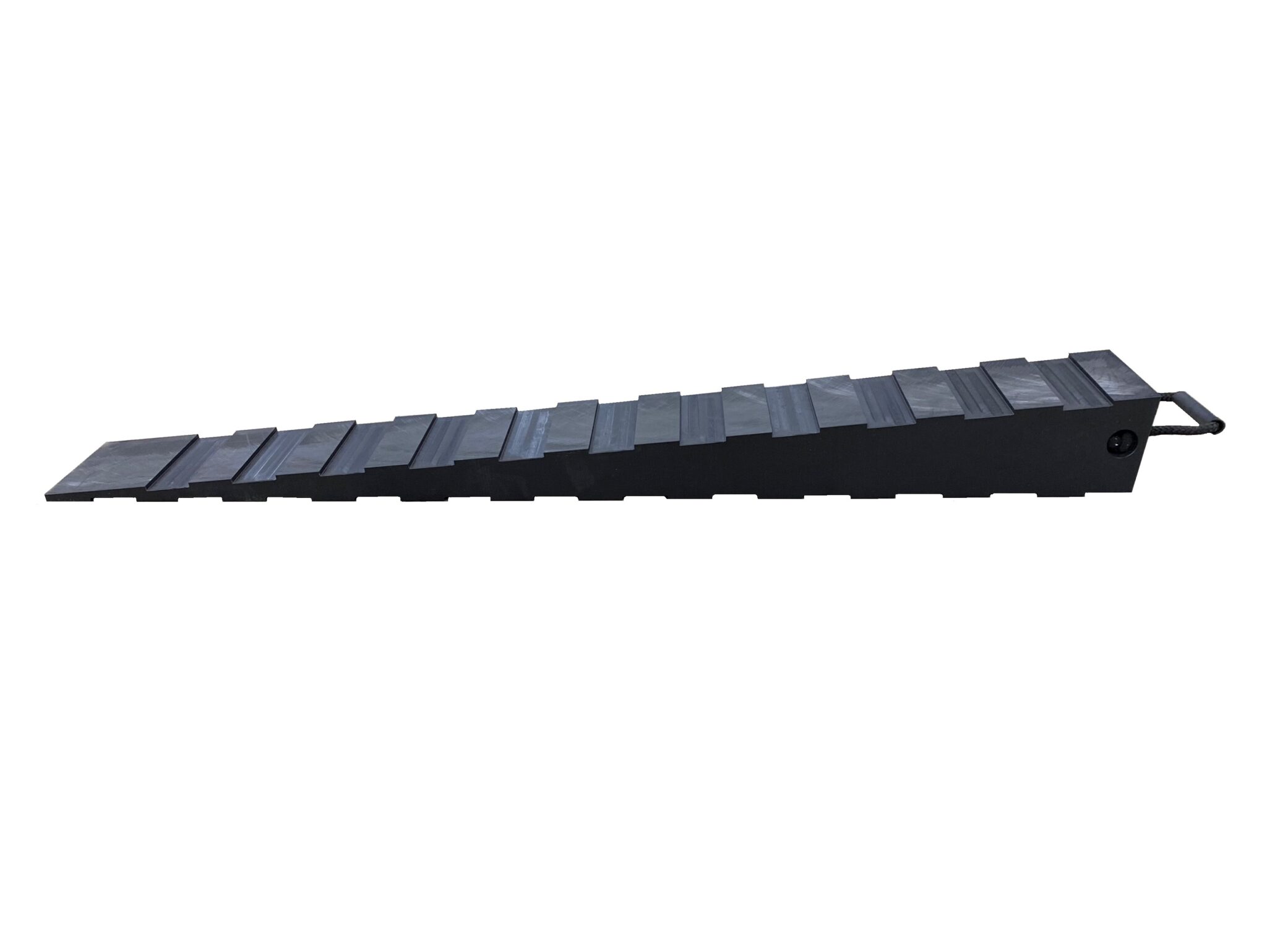

Wedge Part 1

Use the Wedge Part 1 as part of an innovative interlocking system designed to safely support and level your equipment and machinery on uneven or sloping ground. Wedges Part 1 & 2 work together to achieve two different angles providing up to 10° lift. They offer long-lasting performance with minimal maintenance, and is a much safer alternative to using wood.

Features include:

  • 1200 X 150 X 120 Wedge Part 1 providing a 5° angle
  • Combine with the 1200 X 150 X 120 Wedge Part 2 to achieve a 10° angle
  • Stackable interlocking design
  • Lightweight with integrated rope handle for ease of lifting and stacking
  • Made from high quality, High Molecular Weight Polyethylene (HMW-PE)
  • Offers protection from water, corrosion and splintering

To make an enquiry about our pads or to get a quotation call us on 01952 671403 or contact us via email

Material Specification

Property Value Test Method
Density 0.93-0.955g/cm³ ASTM D1505
Melting point 133-135°C ASTM D3418
Tensile strength at yield 23-26MPa IOS 527:2012
Tensile strength at break 14-16MPa ISO 527:2012
Elongation at break 80-100% ISO 527:2012
Elasticity modulus 1100-1210MPA ISO 527:2012
Charpy impact strength - notched 33-37KJ/m² ISO 179-1:2011
Hardness 67-69 SHORE D ISO 868:2003
Wear resistance sand-slurry-test  372%  ISO 15527
Average coeff. of linear thermal expansion  2x10-4m/(m/K)  -
Service temperature  -100 to 80°C  -
**The above specifications apply to all Eco Lift,  Hi-Viz and Motorhome & Caravan pads**
