Square Recessed Motorhome Pad

Square Recessed Motorhome Pad

List: £23.40
BIG SAVINGS WHEN YOU BUY ONLINE!

£21.06 +VAT

Out of stock

Orders placed before 2pm will be delivered next working day *
* Pallets can take between 1-3 days. Mainland UK. Timings will vary for overseas orders dependant on air, sea or road freight.

Out of stock
SKU: IP-72047 Categories: , , ,
Dimensions (mm)300 x 300 x 25
Recess Size (mm)288 x 288 x 5
Load Capacity (tonnes)4.00
Weight (kgs)2.00
Product CodeIP-72047

Ask about our Price Match Promise!

Need a hand? Speak to our expert team.

Product Description

IP-72047

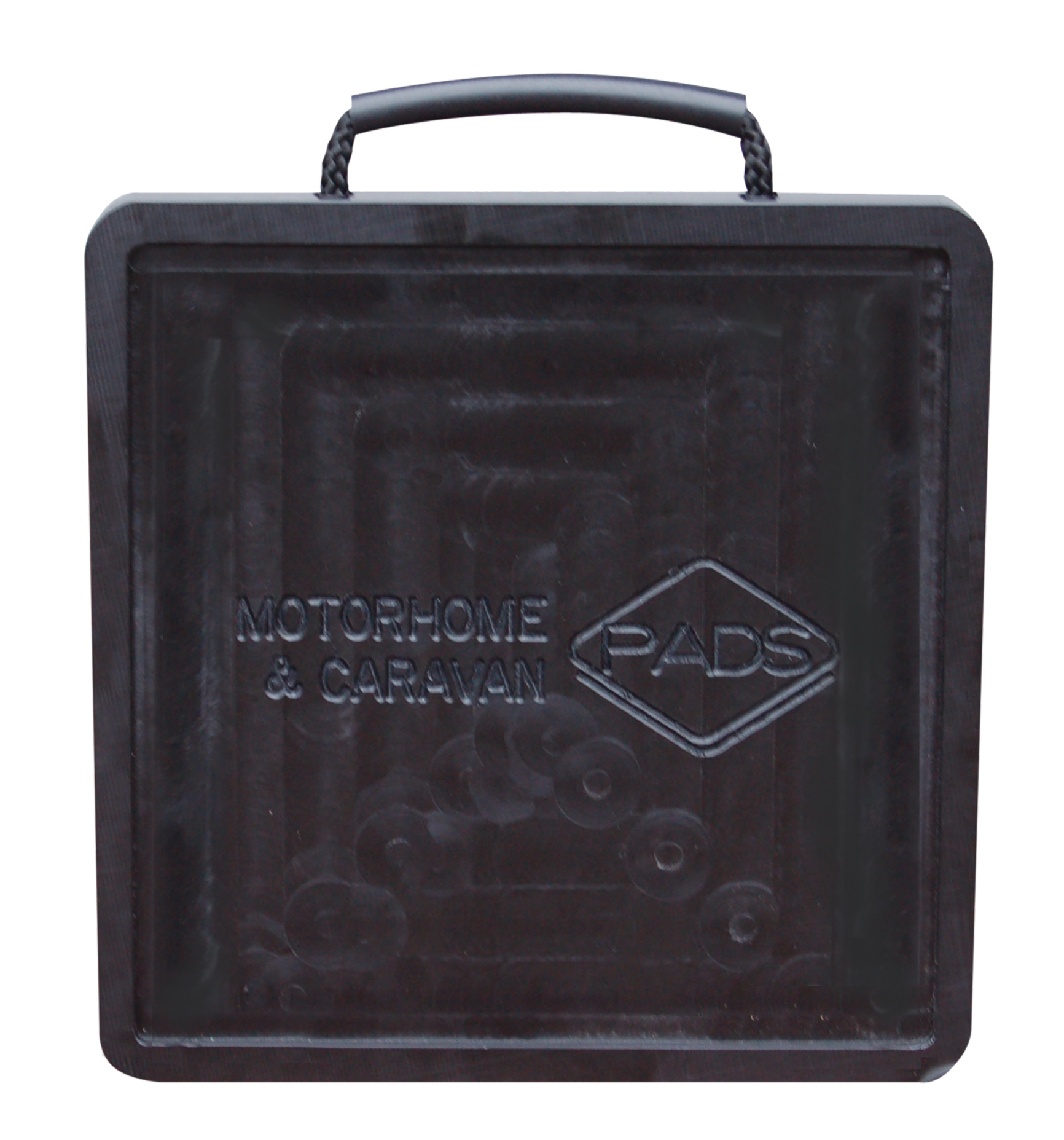

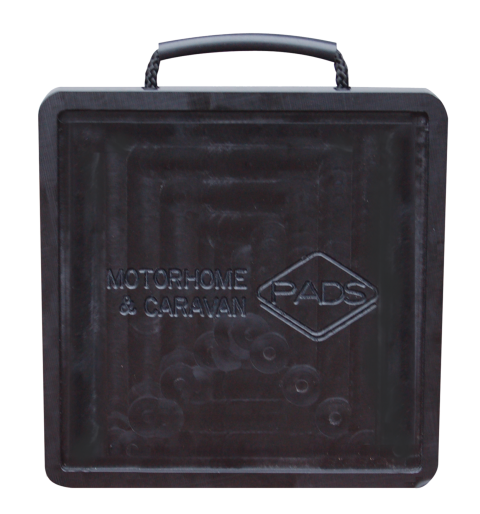

Motorhome / Camper Van Stabiliser Pad (Jack Pad) with Square Recess



Features Include:

  • 288 x 288 x 5mm machined recess to help contain foot and prevent slippage
  • Lightweight and easy to handle and store with minimal effort
  • Ideal for stabilising motor homes, RVs and camper vans

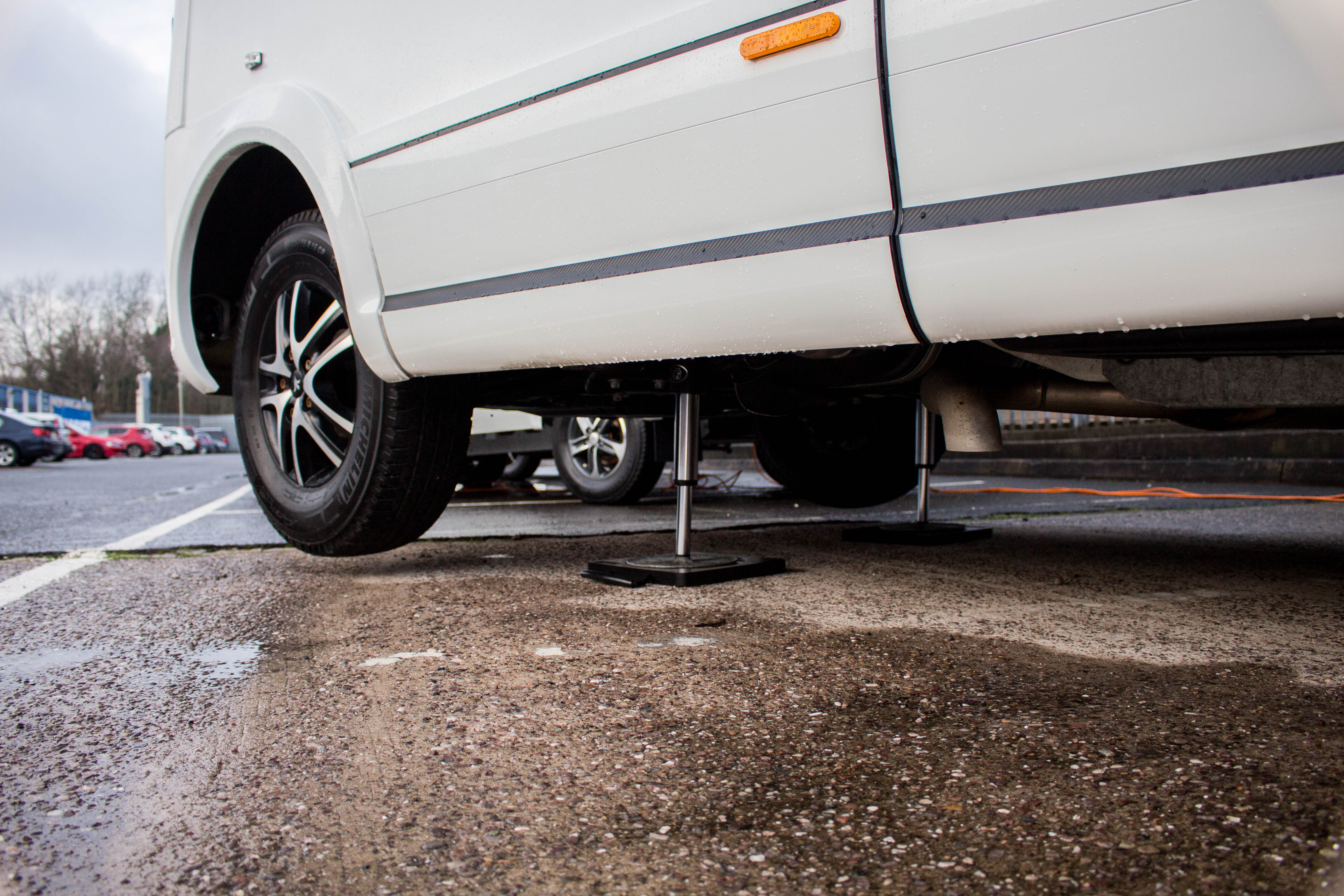

  • Provides tough and stable support for jack and levelling legs on grass and soft ground
  • Made from extremely high quality, high molecular weight polyethylene (HMWP)
  • Price for a single pad only

To make an enquiry about our pads or to get a quotation call us on 01952 671403 or contact us via email.

Material Specification

Property Value Test Method
Density 0.93-0.955g/cm³ ASTM D1505
Melting point 133-135°C ASTM D3418
Tensile strength at yield 23-26MPa IOS 527:2012
Tensile strength at break 14-16MPa ISO 527:2012
Elongation at break 80-100% ISO 527:2012
Elasticity modulus 1100-1210MPA ISO 527:2012
Charpy impact strength - notched 33-37KJ/m² ISO 179-1:2011
Hardness 67-69 SHORE D ISO 868:2003
Wear resistance sand-slurry-test  372%  ISO 15527
Average coeff. of linear thermal expansion  2x10-4m/(m/K)  -
Service temperature  -100 to 80°C  -
**The above specifications apply to all Motorhome and Caravan pads**
