400 x 400 Outrigger Pad Stowage Kit Eco Lift

400 x 400 Outrigger Pad Stowage Kit Eco Lift

List: £166.91
BIG SAVINGS WHEN YOU BUY ONLINE!

£166.91 +VAT

Orders placed before 2pm will be delivered next working day *
* Pallets can take between 1-3 days. Mainland UK. Timings will vary for overseas orders dependant on air, sea or road freight.

In stock
SKU: IP-72066 Categories: , , , , , ,
Dimensions (mm)400 x 400 x 40
Load Capacity (tonnes)12.00
Weight (kgs)19.60
Product CodeIP-72066

Ask about our Price Match Promise!

Need a hand? Speak to our expert team.

Product Description

IP-72066

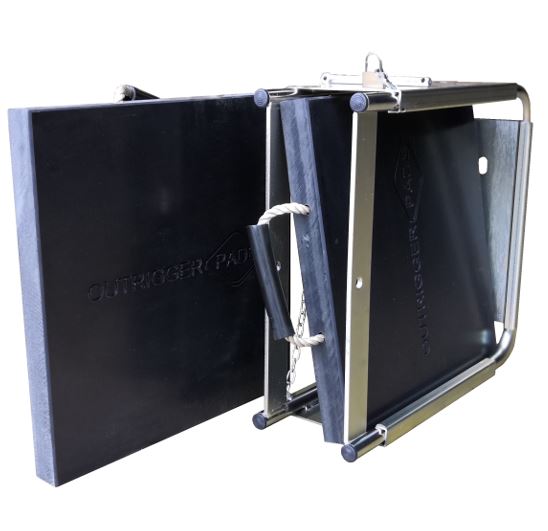

Eco Lift Outrigger Pads (x2) with Stowage Holster

Kit includes:

  • 400x400x40 Eco Lift outrigger pads x 2
  • Fully galvanised stowage holster which can bolted down for safe and secure stowage (hold two outrigger pads)
  • Mounting brackets

Features include:

  • Made from extremely high quality, high density polyethylene (UHMW-PE)
  • Offers protection against water, corrosion and splintering
  • Light and easy to handle as well as retains its shape under extreme vertical pressure due to the in-built memory technology making them virtually indestructible

To make an enquiry about our pads or to get a quotation call us on 01952 671403 or contact us via email

Material Specification

Property Value Test Method
Density 0.93-0.955g/cm³ ASTM D1505
Melting point 133-135°C ASTM D3418
Tensile strength at yield 23-26MPa IOS 527:2012
Tensile strength at break 14-16MPa ISO 527:2012
Elongation at break 80-100% ISO 527:2012
Elasticity modulus 1100-1210MPA ISO 527:2012
Charpy impact strength - notched 33-37KJ/m² ISO 179-1:2011
Hardness 67-69 SHORE D ISO 868:2003
Wear resistance sand-slurry-test  372%  ISO 15527
Average coeff. of linear thermal expansion  2x10-4m/(m/K)  -
Service temperature  -100 to 80°C  -
**The above specifications apply to all Eco Lift,  Hi-Viz and Motorhome & Caravan pads**
