ECOCRIB 3-CRIB KIT 12

ECOCRIB 3-CRIB KIT 12

List: £1,544.60
BIG SAVINGS WHEN YOU BUY ONLINE!

Original price was: £1,544.60.Current price is: £1,158.45. +VAT

Orders placed before 2pm will be delivered next working day *
* Pallets can take between 1-3 days. Mainland UK. Timings will vary for overseas orders dependant on air, sea or road freight.

In stock
SKU: IP-72109 Categories: , , , , , , , ,
Dimensions (mm)600 x 600 x 560
Load Capacity (tonnes)50.00
Weight (kgs)194.30
Product CodeIP-72109

Ask about our Price Match Promise!

Need a hand? Speak to our expert team.

Product Description

IP-72109

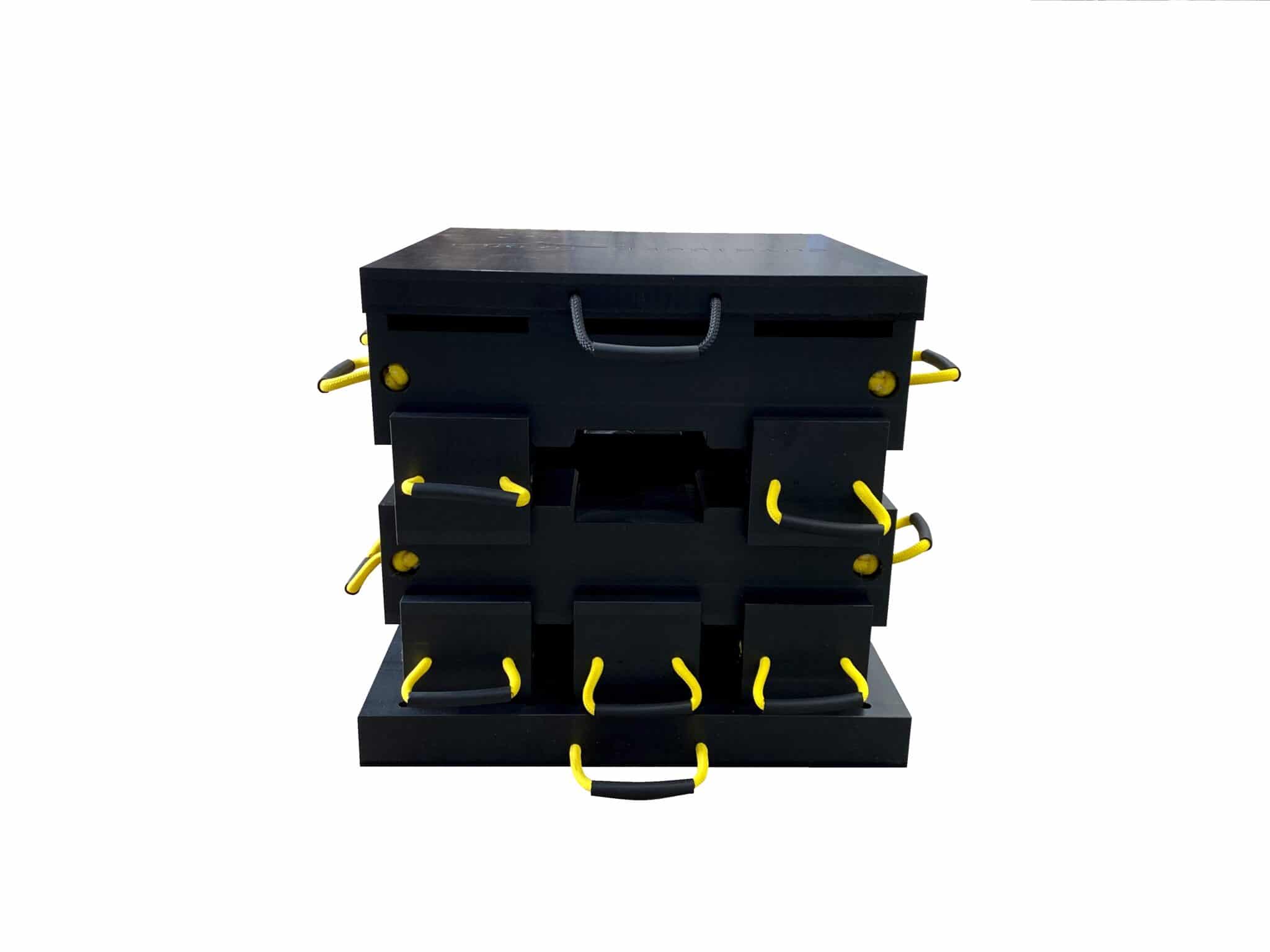

ECOCRIB 3-CRIB KIT 12

Heavy duty cribbing block kit to create a safe set-up for use under stabilisers and outrigger feet to assist with levelling equipment. Designed to support, stabilise and protect the ground from downward forces, and are commonly used in jacking and lifting applications.

It's compact size means you can quickly and safely build a stable crib to the desired height. The ECOCRIB cribbing block system offers long-lasting performance with minimal maintenance, and are a much safer alternative to wood.

Kit includes:

  • 600 x 150 x 150mm interlocking cribbing blocks x12
  • 600 x 600 x 48mm top pad x1
  • 650 x 650 x 68mm base pad x1

Features include:

  • Up to 50t load bearing capacity
  • Lightweight with two rope handles for easy lifting and handling
  • Quickly and safely build stable cribs to support loads
  • Made from extremely high quality, heavy duty High Molecular Weight Polyethylene (HMWPE)
  • Offers protection against water, corrosion and splintering

For more information or to purchase this product, call us on 01952 671403 or contact us via email

Material Specification

Property Value Test Method
Density 0.93-0.955g/cm³ ASTM D1505
Melting point 133-135°C ASTM D3418
Tensile strength at yield 23-26MPa IOS 527:2012
Tensile strength at break 14-16MPa ISO 527:2012
Elongation at break 80-100% ISO 527:2012
Elasticity modulus 1100-1210MPA ISO 527:2012
Charpy impact strength - notched 33-37KJ/m² ISO 179-1:2011
Hardness 67-69 SHORE D ISO 868:2003
Wear resistance sand-slurry-test  372%  ISO 15527
Average coeff. of linear thermal expansion  2x10-4m/(m/K)  -
Service temperature  -100 to 80°C  -
**The above specifications apply to all Eco Lift, Hi-Viz and Motorhome & Caravan pads**
